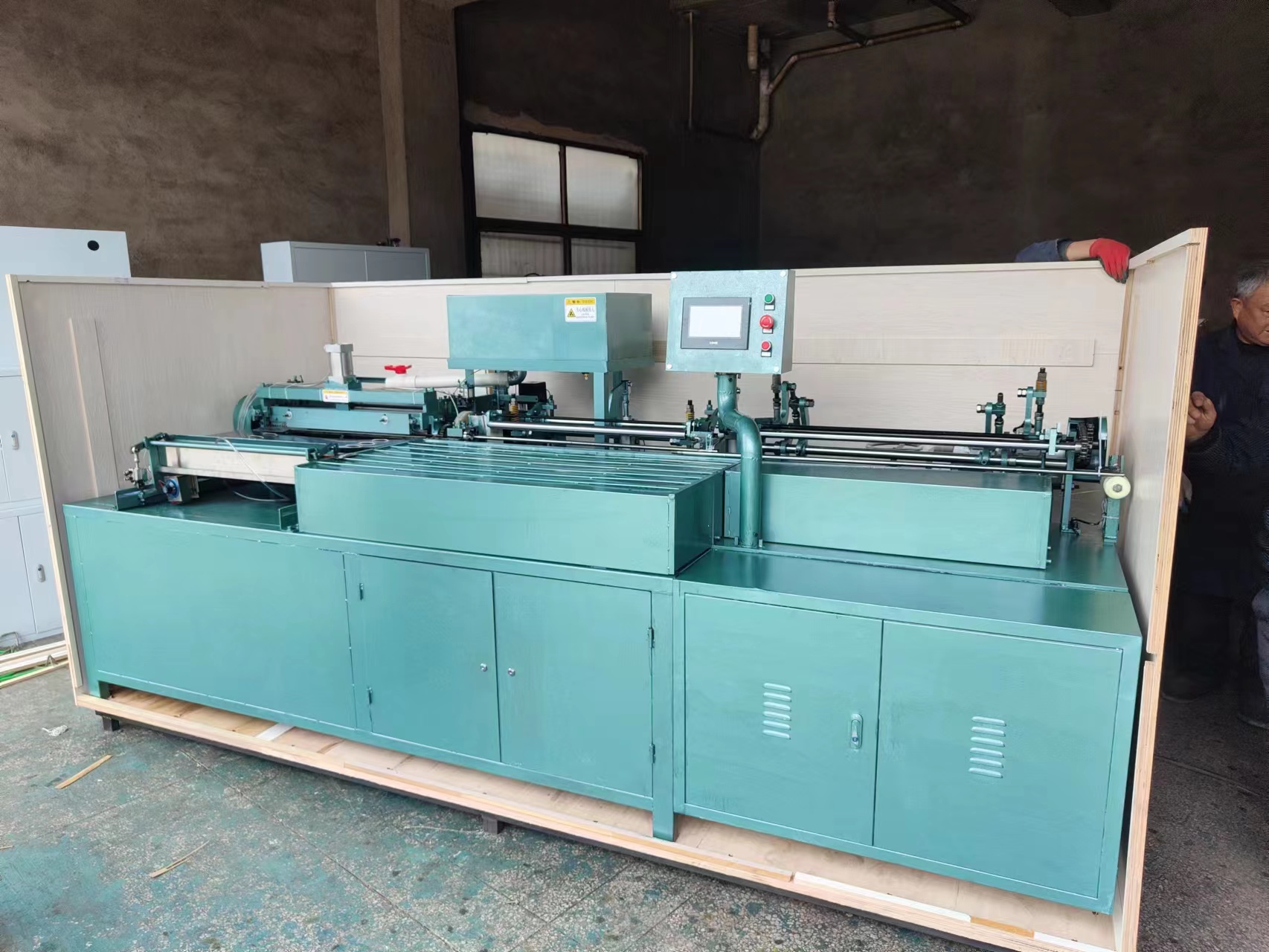

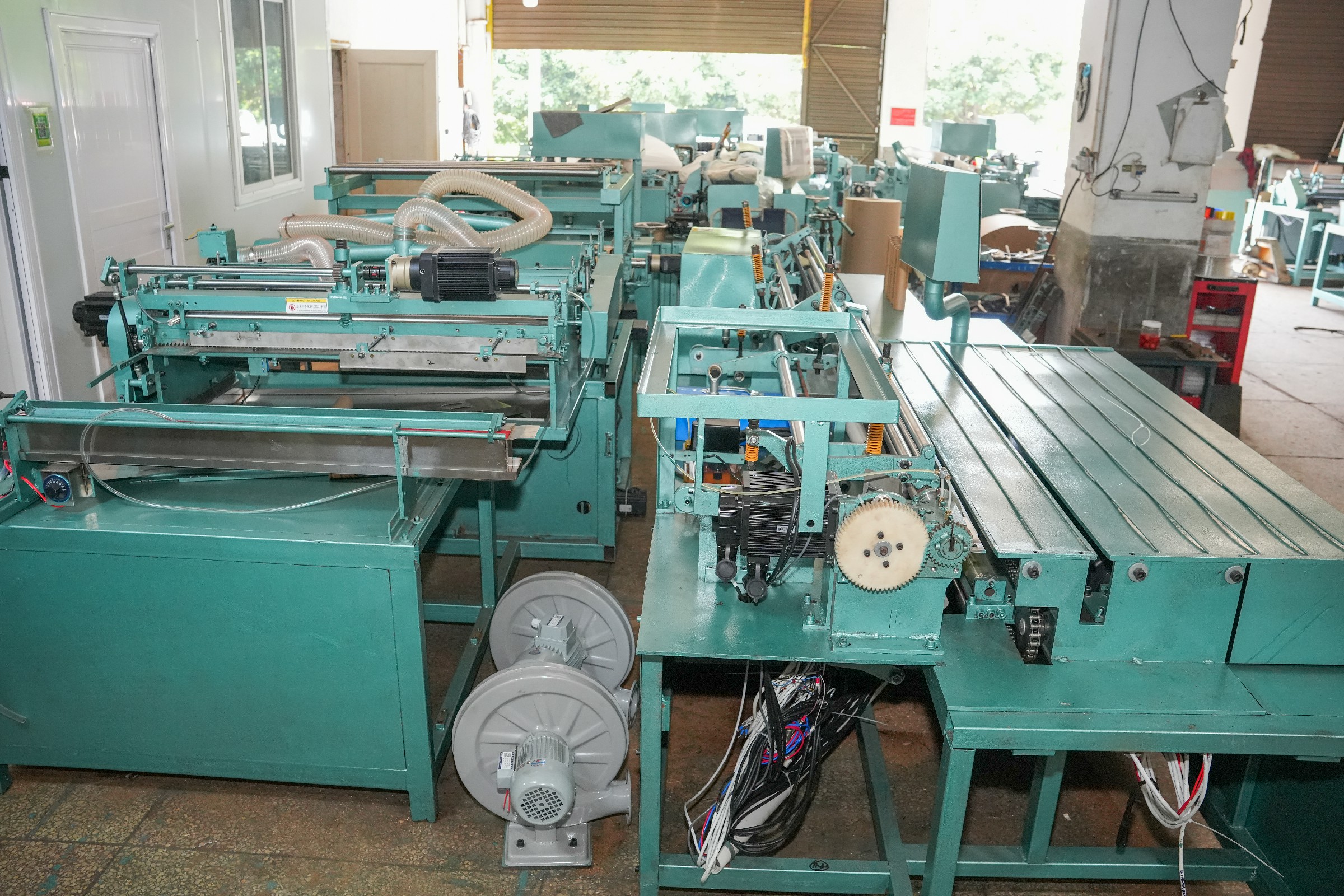

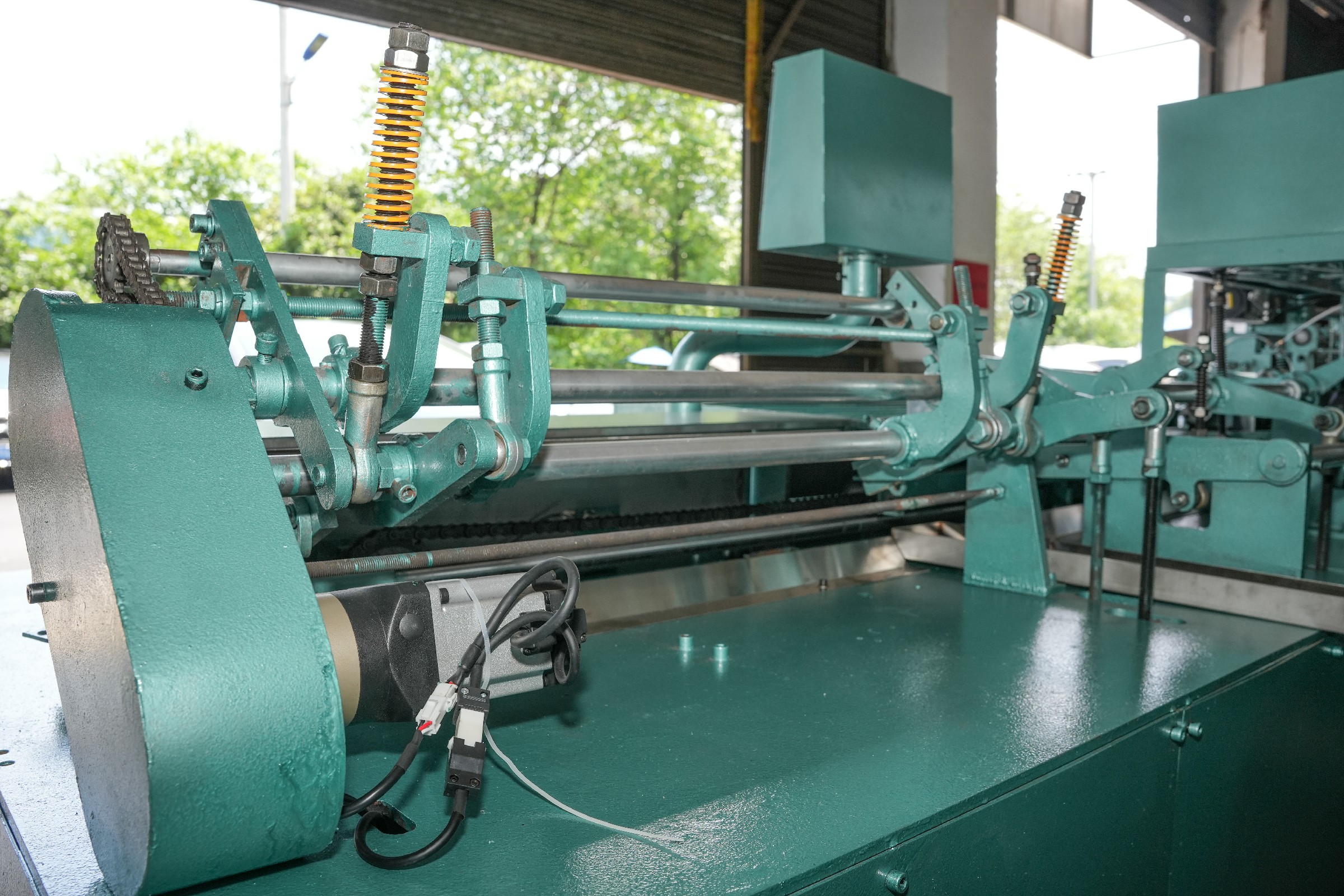

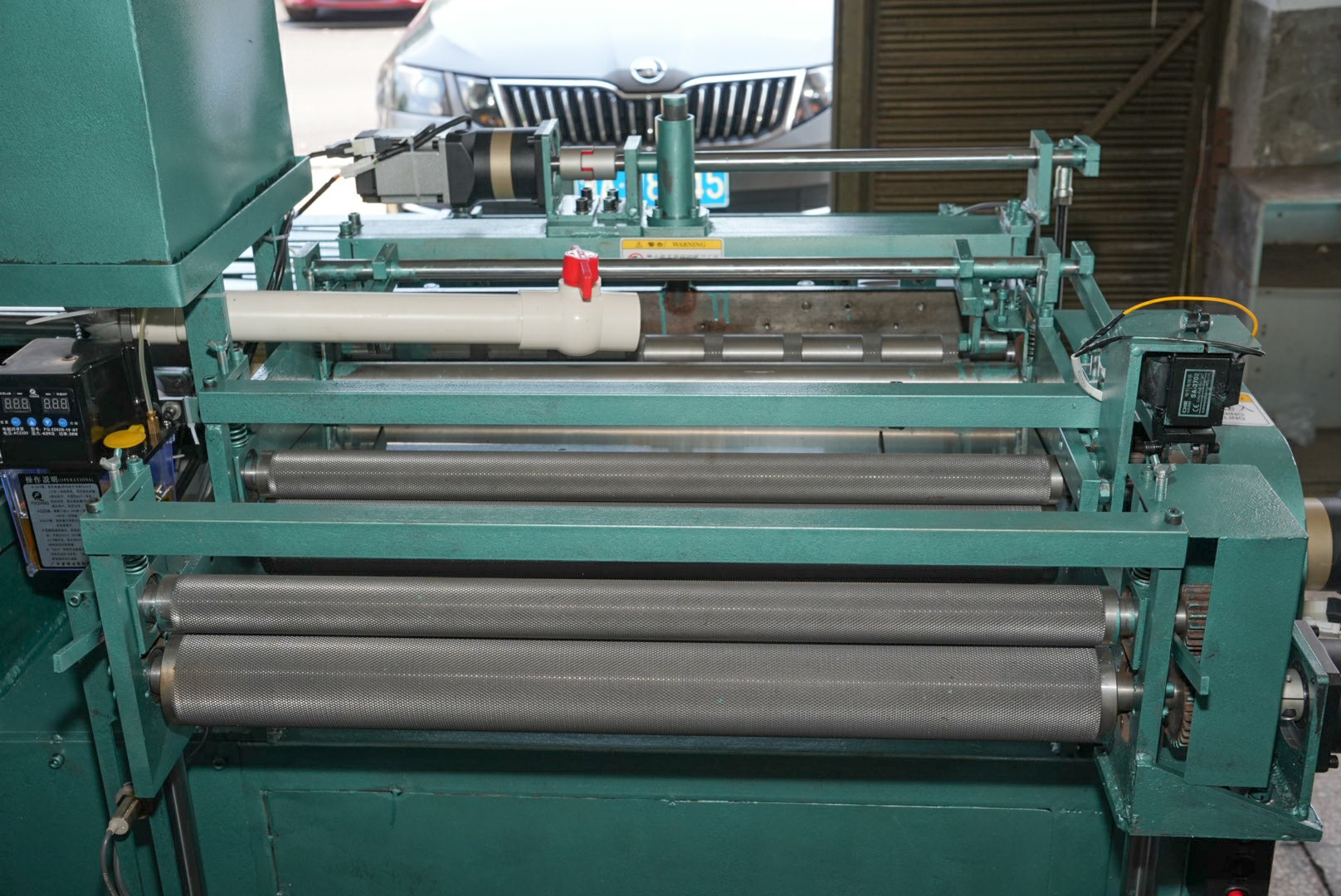

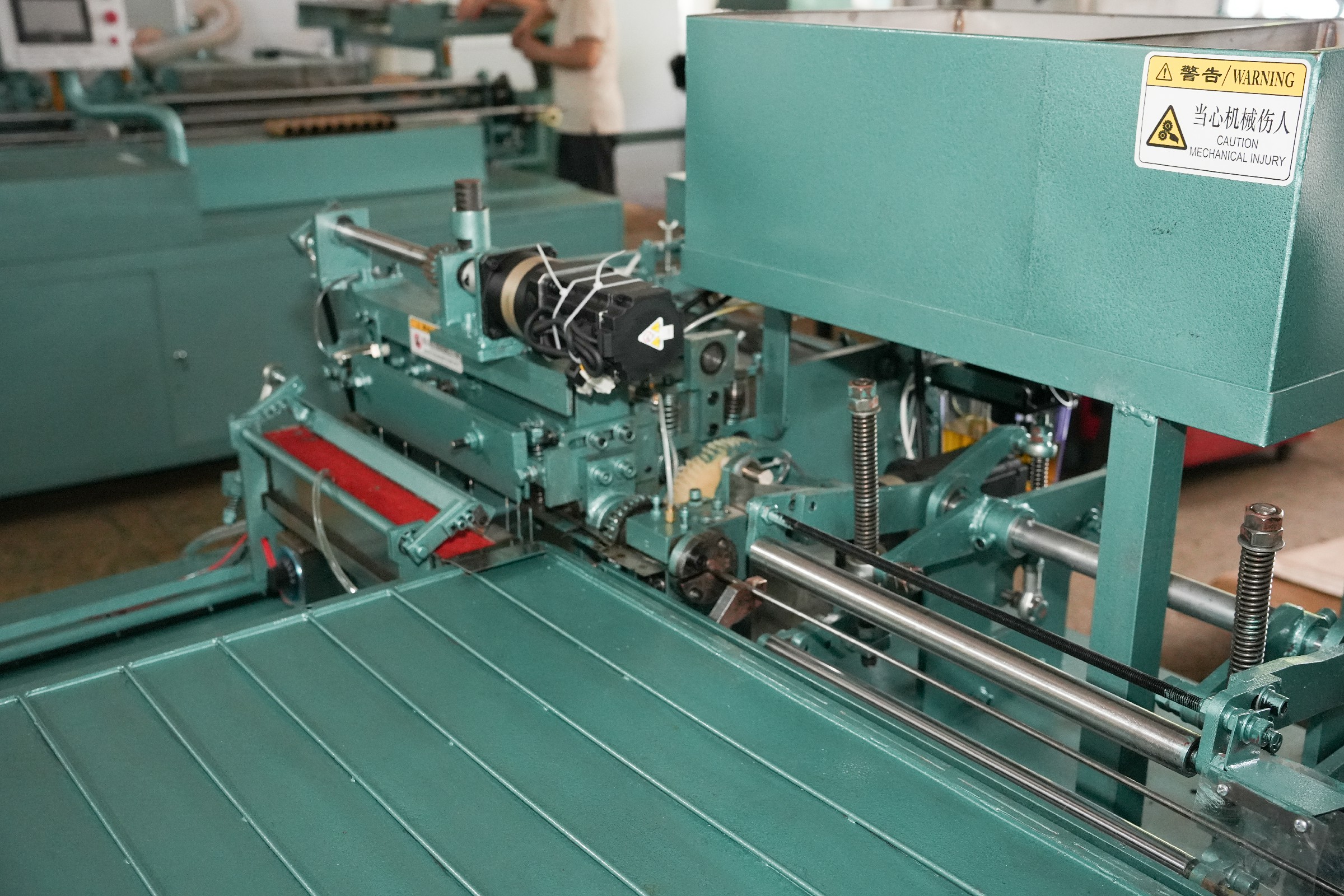

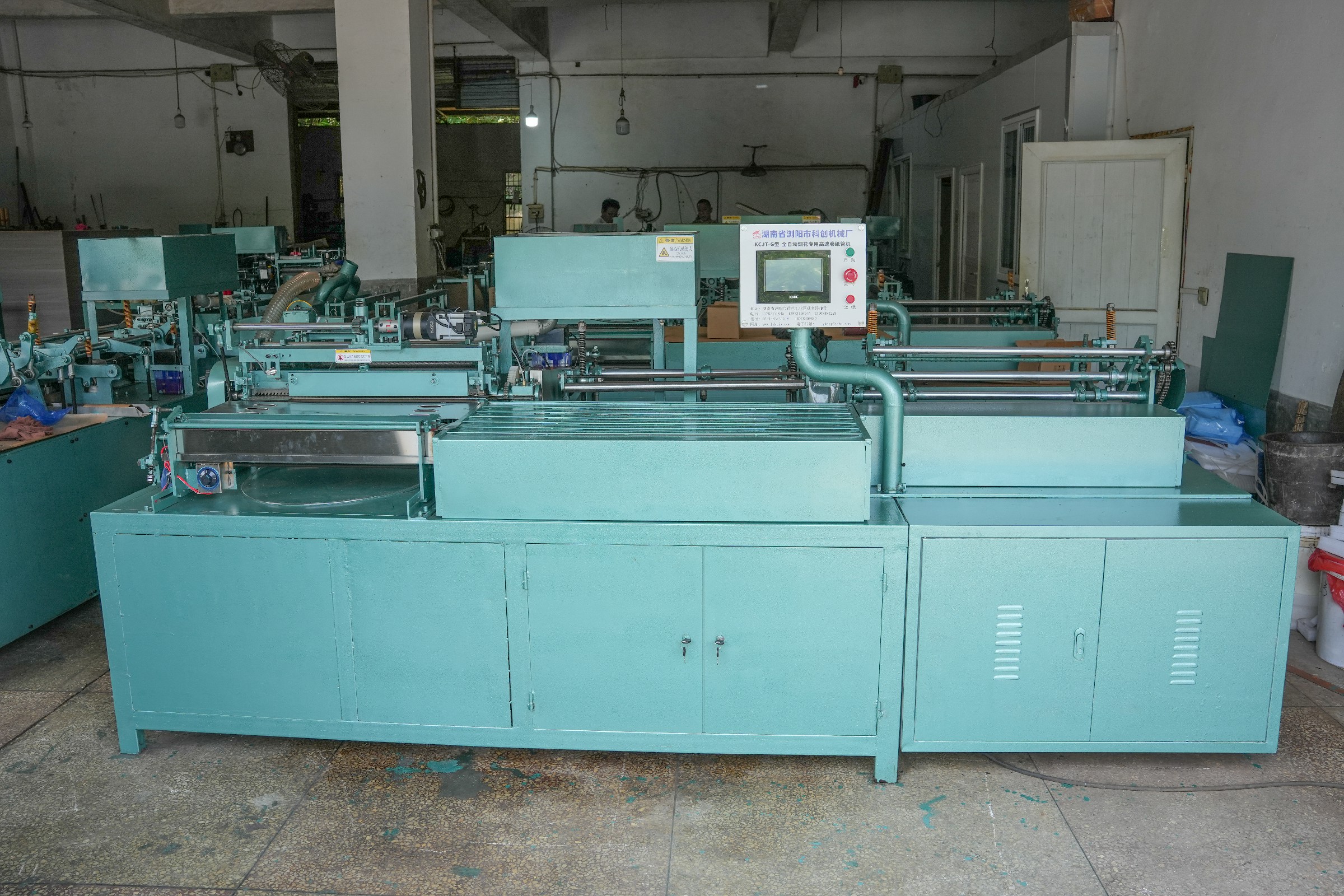

Paper Tube Rolling Machine with Grinding Device+Printing, ID 7-40 mm, CS-12 B2 Type
CS-12 B2 paper tube rolling machine for 7–40 mm ID tubes with 1–5 mm walls. Automatic control and servo-driven ejection. Get a quote.
Model: CS-12-B2
Number of Paper Plies: 3–15 layers
Tube Inner Diameter: 7–40 mm
Tube Wall Thickness: 1–5 mm
Applicable Paper Weight: 180–250 gsm
Maximum Finished Tube Length: 900 mm
Maximum Paper Feed Length: 1300 mm
Gluing Method: Single-sided gluing
Paper Feeding Speed: 30–35 sheets/min
Speed Control: Variable-frequency drive (VFD)
Compatible Adhesives: White glue / tapioca starch-based adhesive
Total Installed Power: 8.5 kW
Power Supply: 380 V, 50 Hz
Compressed Air Requirement: Not required
Operating Personnel: 1 operator
Main Drive Motor: 1 × variable-speed motor, 0.75 kW
Servo Motors: 1 × 1.5 kW; 6 × 0.75 kW
Machine Weight: 1,600 kg
Overall Dimensions (L × W × H): 2,800 × 2,760 × 1,560 mm

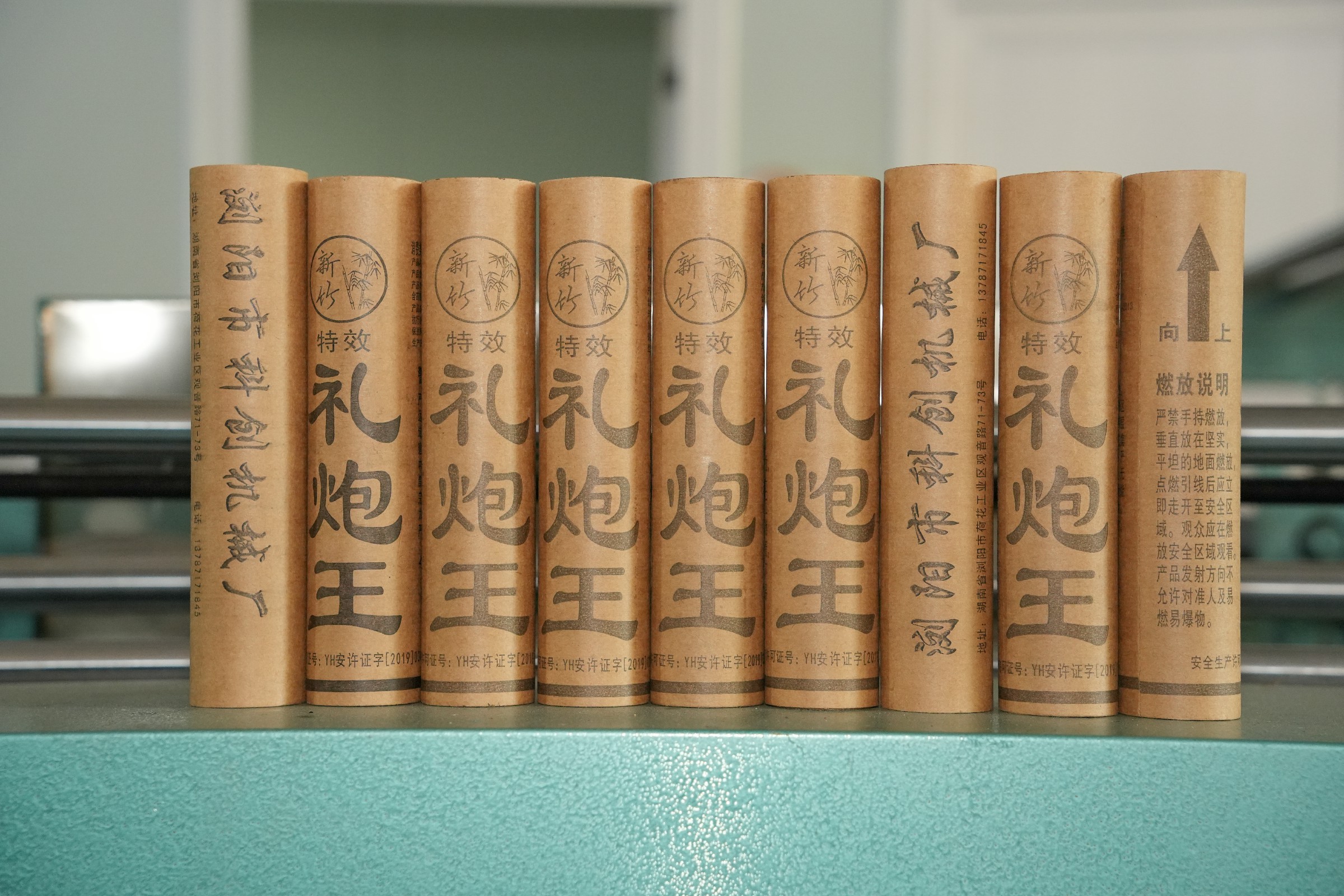

1. Direct Paper Tube Forming
Produces paper tubes of the required length directly from web-fed base paper. The tube winding direction is consistent with the base paper feed direction, helping achieve high tube strength and consistent forming quality. No water or oil application is required during the initial winding of the paper tube, helping ensure a clean, well-formed tube opening.
2. Industrial Control System
Equipped with a programmable industrial controller offering strong anti-interference capability, stable operation and reliable performance.
3. Quality Electrical and Pneumatic Components
Uses electrical and pneumatic components from established manufacturers to ensure durability and reliable operation.
4. Low Energy Consumption
Designed with relatively low motor power requirements to help reduce energy consumption.
5. Fully Automatic Numerical Control
All machine movements adopt a numerical control design to achieve fully automatic operation.
6. Adjustable Paper Lifting Mechanism
Features a manually adjusted screw mechanism for flexible and convenient paper lifting and positioning.

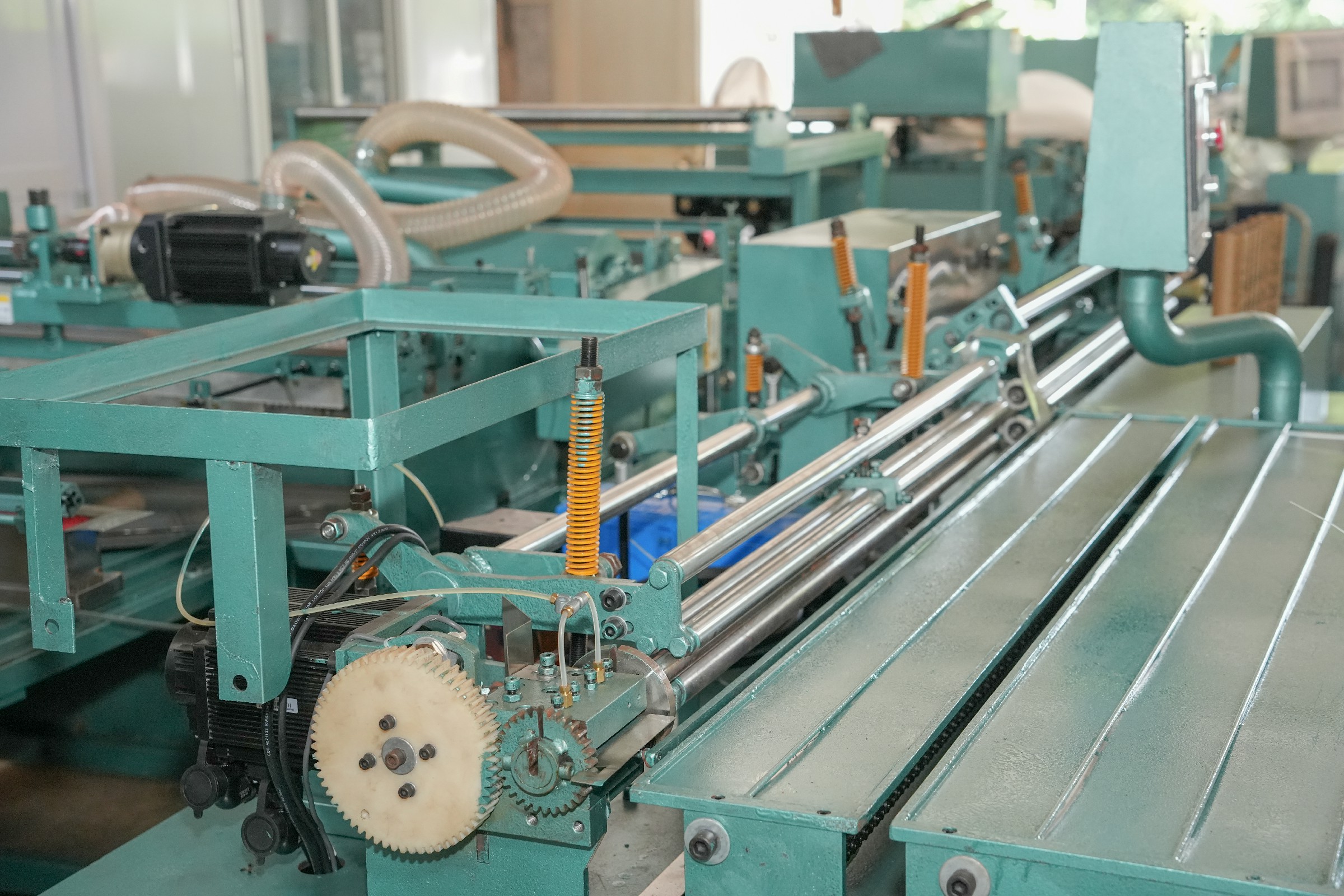

7. Servo-Controlled Tube Ejection
Uses a servo motor to control a rack-and-pinion mechanism for precise tube positioning and ejection, ensuring stable and reliable operation.

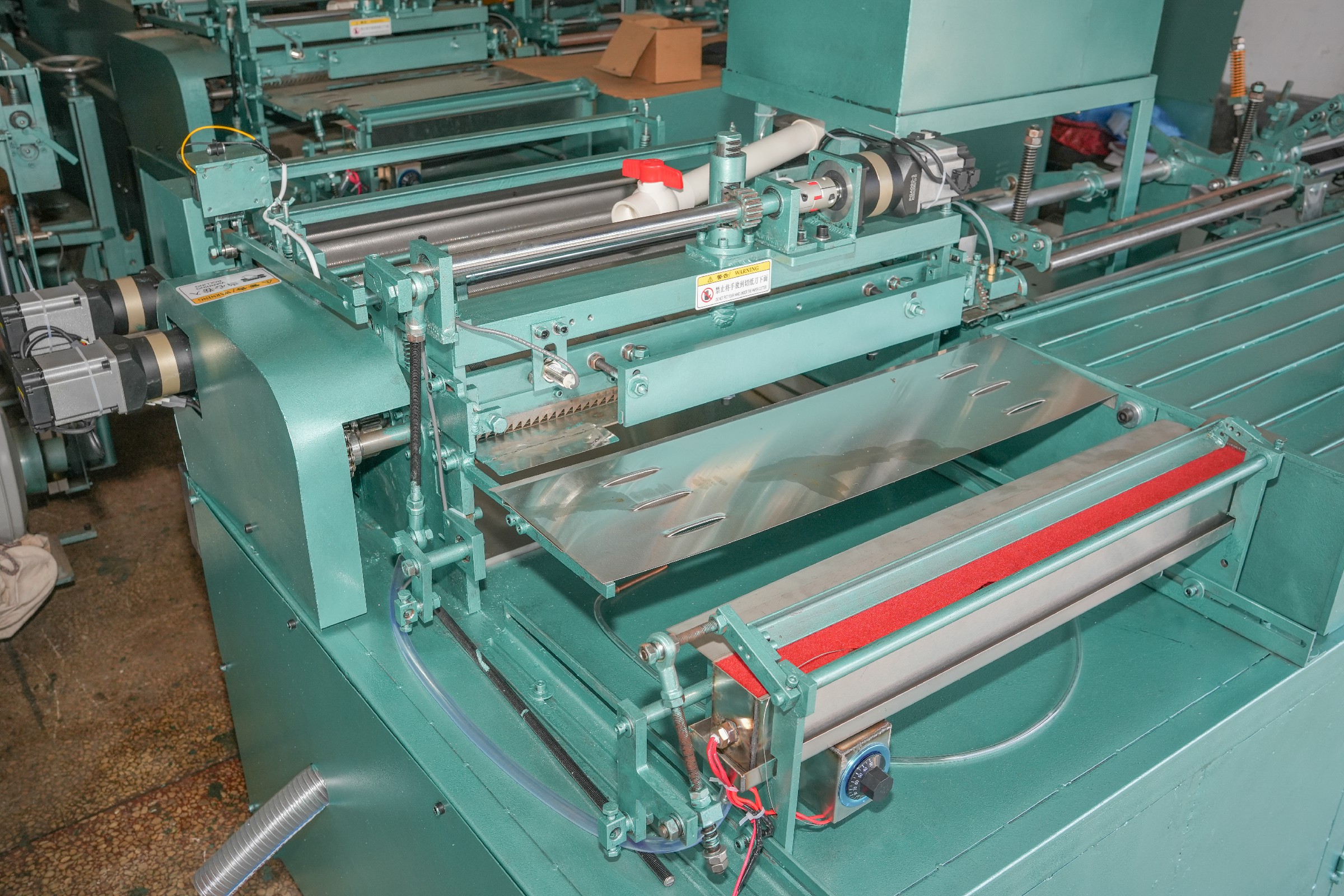

8. Automatic Water Application and Special Gluing Process
Automatically applies water to the leading edge of the paper and uses a specially designed segmented gluing process. This helps prevent the paper edge from springing back and allows smooth tube ejection with minimal resistance.
9. Automatic Water Temperature Control
Automatically regulates water temperature to help prevent sealing problems caused by cold paper tubes.
10. Corrosion-Resistant Liquid Containers
The storage hopper, slip tank and water tank are constructed from stainless steel for improved resistance to acid and corrosion.
11. Wear-Resistant Rotating Components
Rotating components that may come into contact with adhesive are fitted with wear-resistant copper alloy bushings to improve durability and service life.
