Fireworks Star Ball Making Mixing Machine
Fireworks star ball mixing machine with copper ball and explosion-proof motor, 1,200–3,000 kg per day. Built by YOVON. Request a quote.
Product Overview

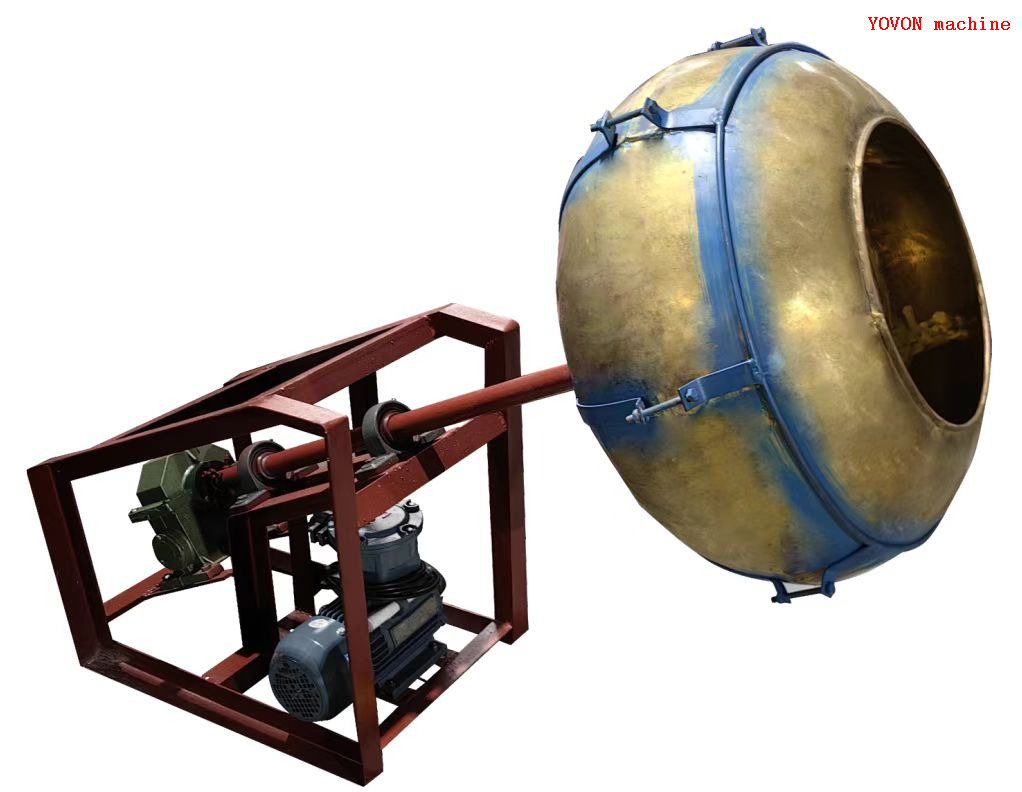

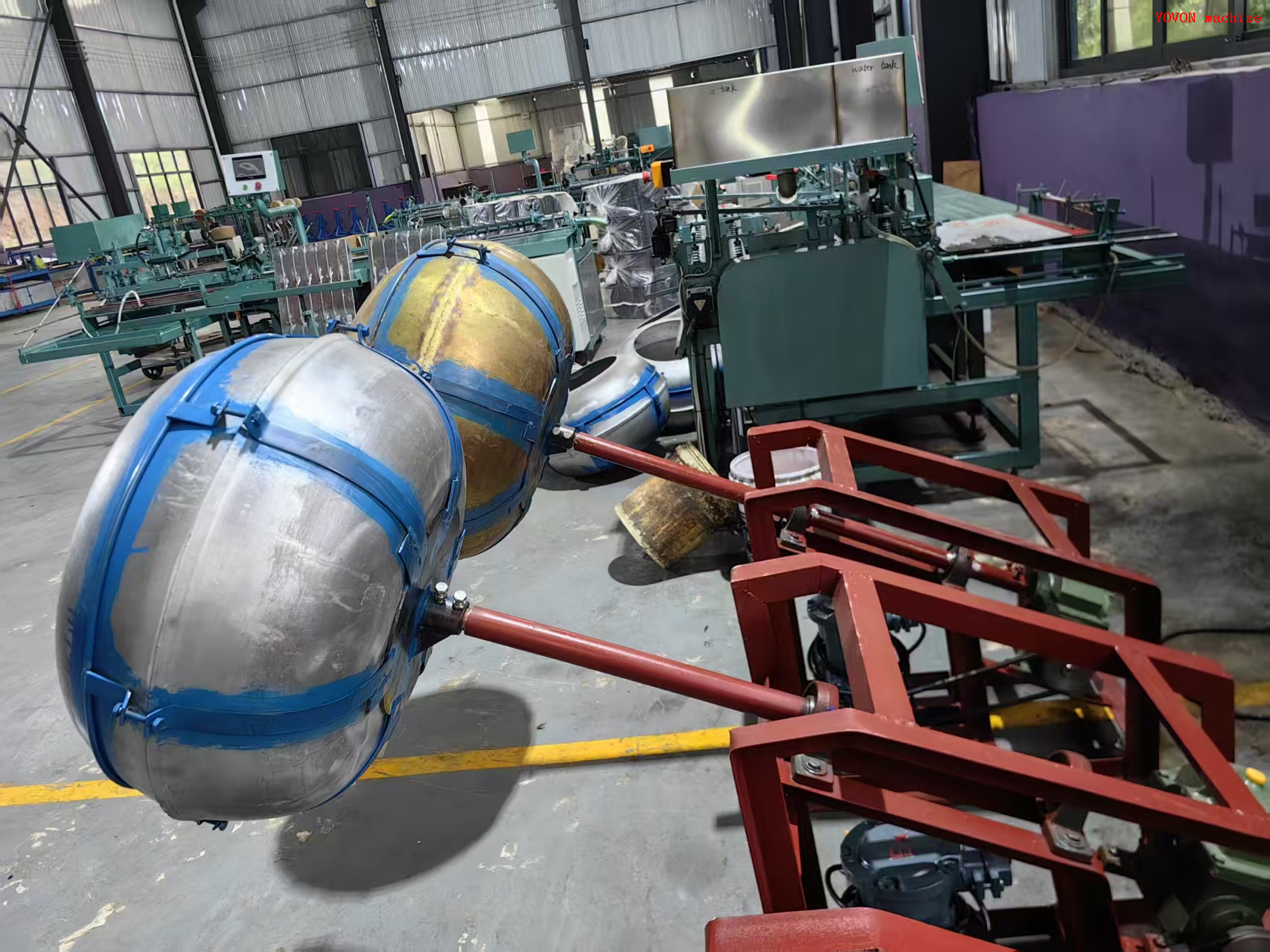

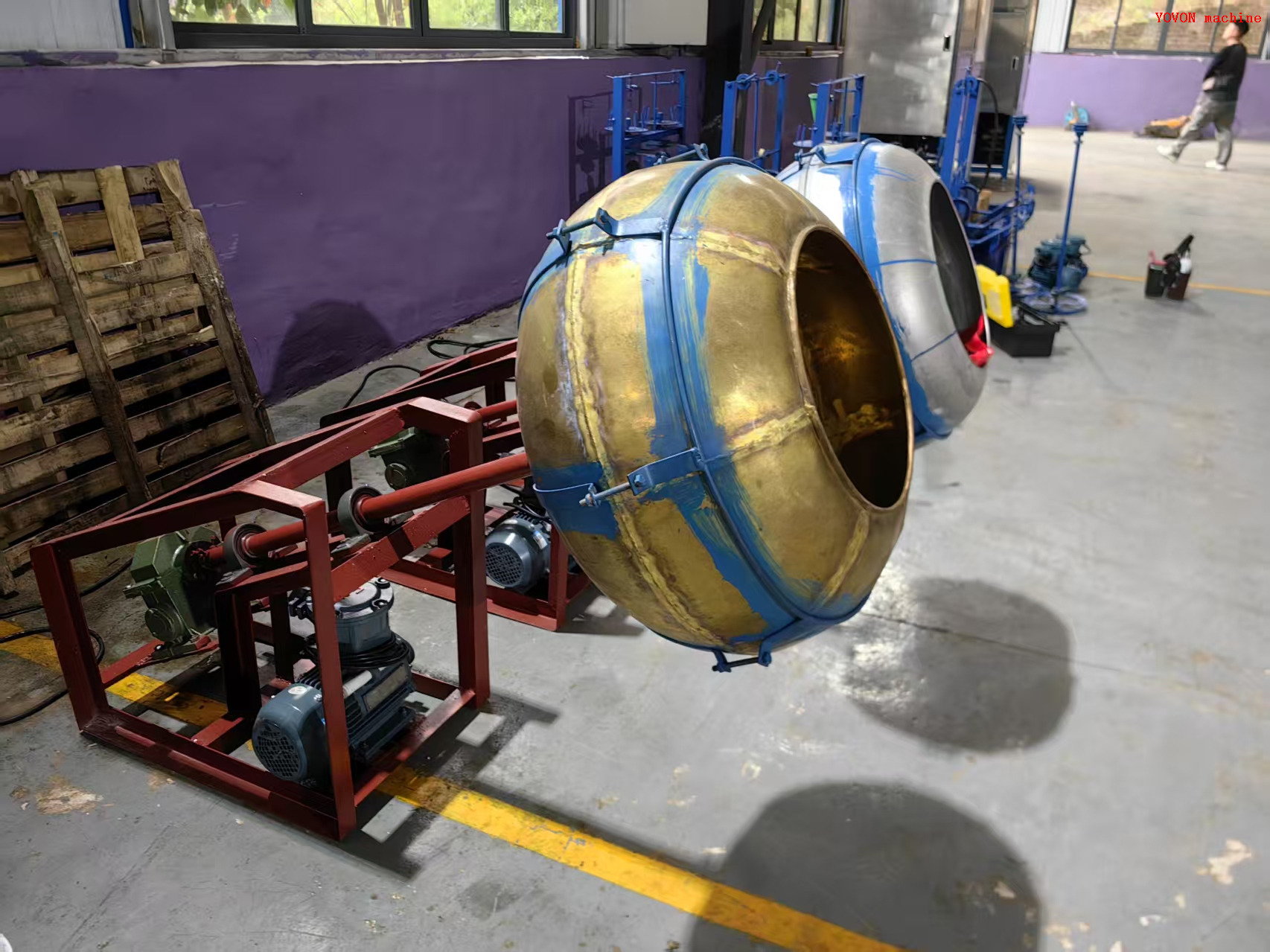

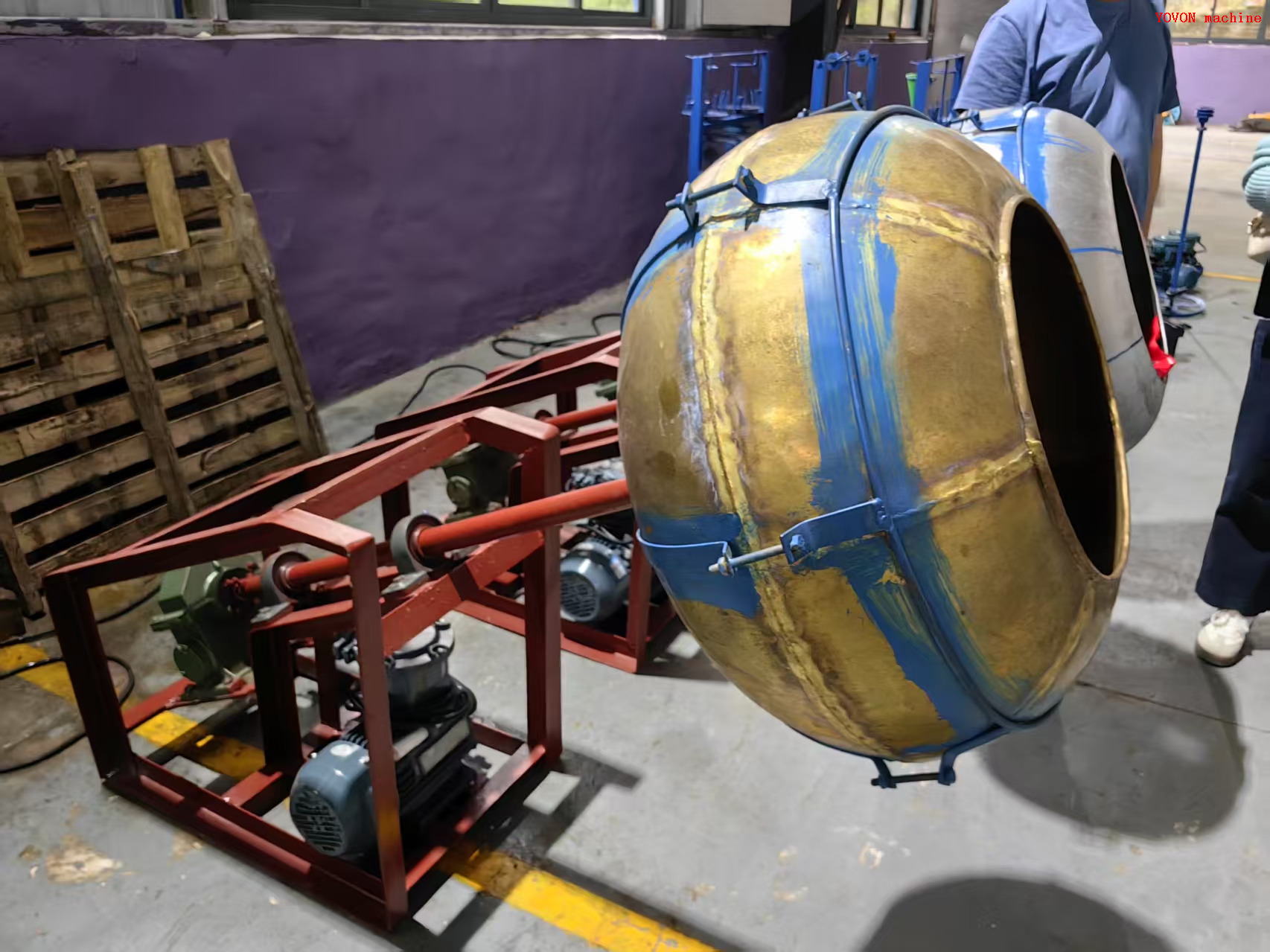

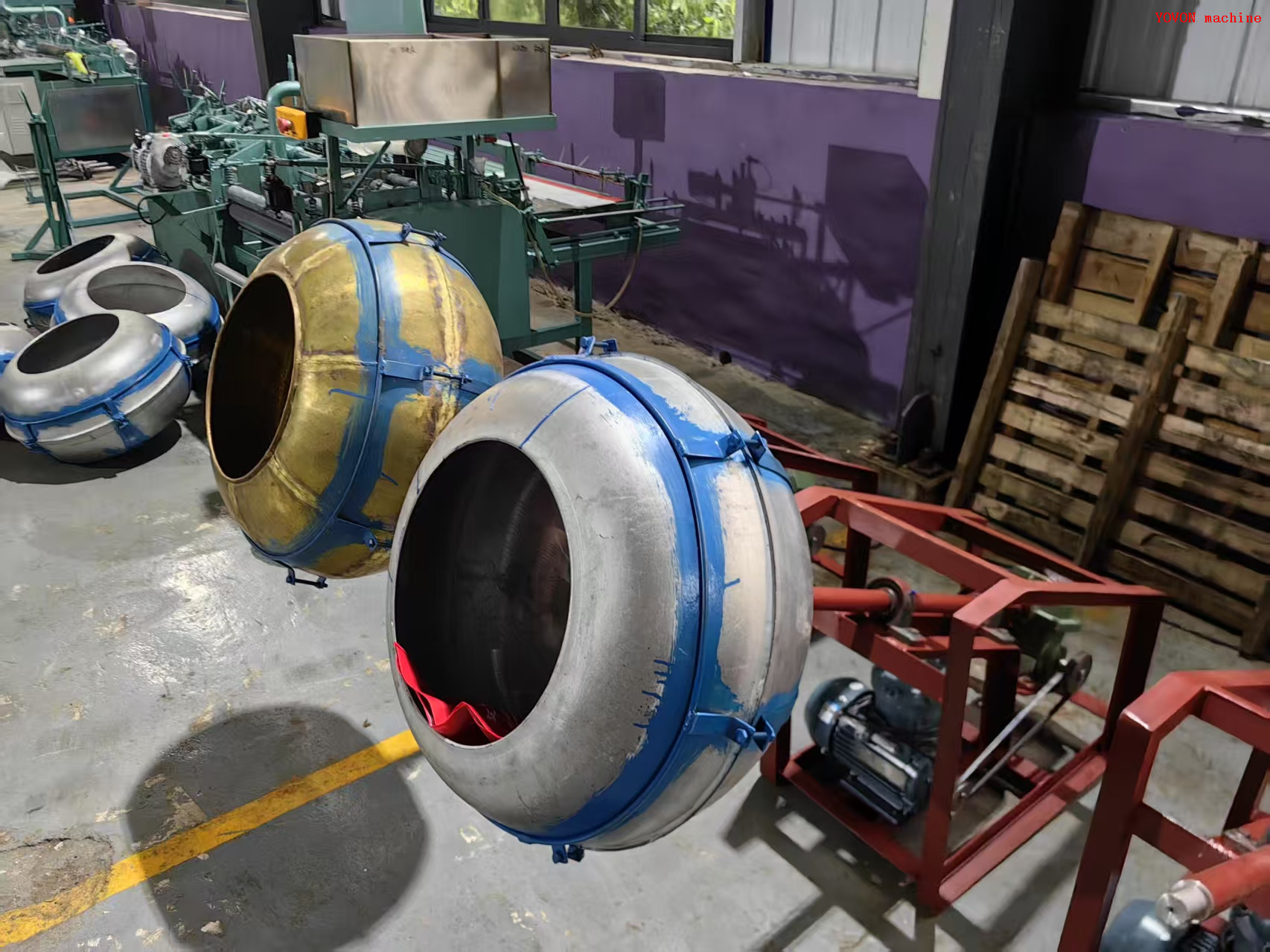

The Fireworks Star Ball Making Mixing Machine mixes chemical powder for fireworks stars in a copper mixing ball driven by an explosion-proof motor. It is built by YOVON, a fireworks machinery manufacturer in Liling, Hunan, China.
Technical Specifications
| Copper ball outer diameter | 650, 700 or 800 mm |
|---|---|
| Wall thickness | 8, 10 or 15 mm |
| Ball capacity (5 sizes) | 30, 50, 70, 100, 120 kg |
| Mixing capacity | 1,200–3,000 kg/day |
| One ball mixes | 50 kg per batch |
| Ball motor | 1.1 kW |
| Frame motor | 2.2 kW, 380 V, explosion-proof |
| Alloy ball size | OD 700 × H 450 mm |
| Frame size | 1.05 × 0.52 × 0.75 m |
| Ball (packed) | 850 × 850 × 550 mm, 0.36 CBM, 40 kg |
| Body frame (packed) | 450 × 750 × 850 mm, 0.29 CBM, 100 kg |
| Total | 0.7 CBM, 140 kg |
To request the full specification and a quotation, tell us your target output and destination country.
