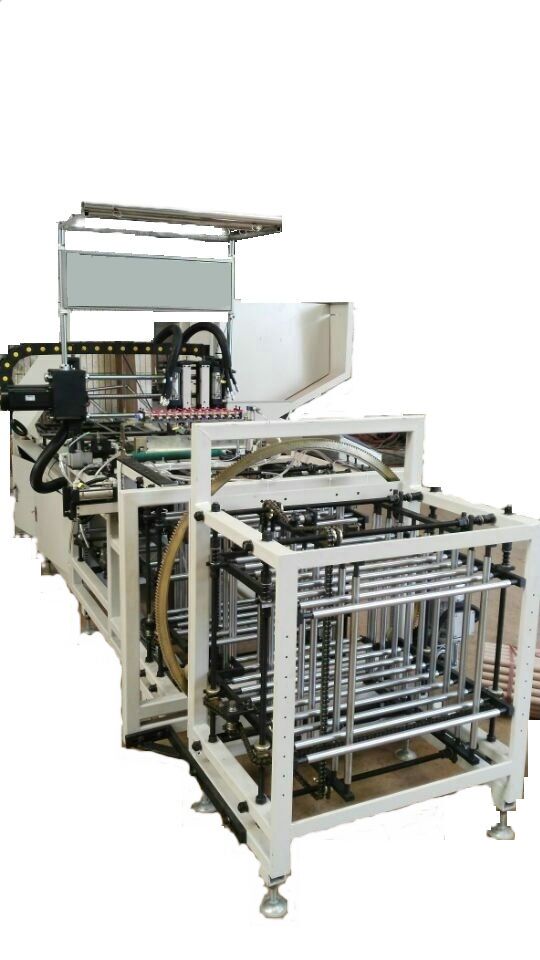

Fireworks Cake Assembling Shaping Machine
Cake fireworks assembling shaping machine (big type, constant fuse speed): 5,000–6,000 shots/h, tube ID 18–30 mm. By YOVON. Request a quote.
Product Overview
The Fireworks Cake Assembling Shaping Machine assembles paper tubes into cake fireworks. This big type keeps the fuse speed constant (invariable speed basin forming). It is built by YOVON, a fireworks machinery manufacturer in Liling, Hunan, China.
Technical Specifications
| Tube inner diameter | 18–30 mm |
|---|---|
| Tube length | 200–400 mm |
| Output | 5,000–6,000 shots/h |
| Machine size | 4 × 1 × 1.5 m |
| Weight | 1,200 kg |
| Air pressure | 0.4 MPa |
| Power | 2 servo motors, 0.35 kW × 2 |
| Voltage | 220 V |
Key Features
Accurate and stable insertion, so product quality reaches export standard
Work efficiency up to 8,000 rounds per hour
Cake size can be adjusted freely
Replaces more than 10 laborers
Assembling the tubes into a cake runs in four steps, namely drilling holes, fuse linking and glue point; black powder filling; pressing the lower disc paper card, filling the inner tubes and pressing the upper disc paper card; and packaging.
To request the full specification and a quotation, tell us your target output and destination country.
