288 Shots Paper Tube making Machine
288 shots paper tube making machine: tube ID 6–16 mm, 25–30 strings/min, 380 V, 300 kg. Built by YOVON in Liling. Request a quote.
Product Overview

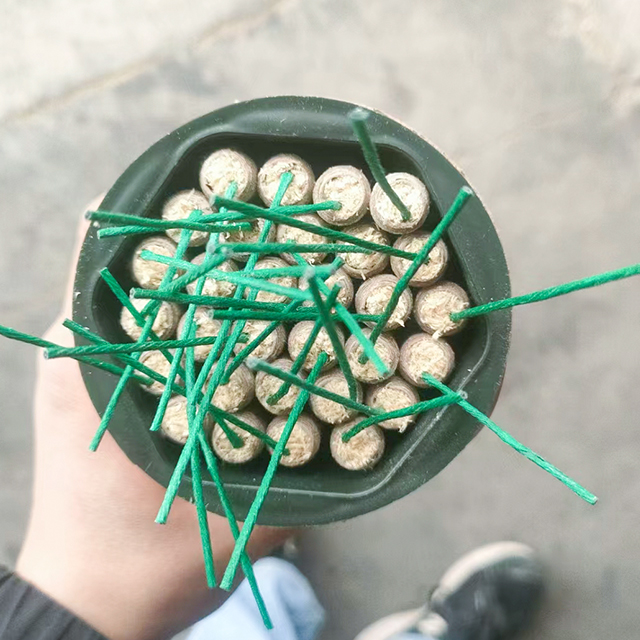

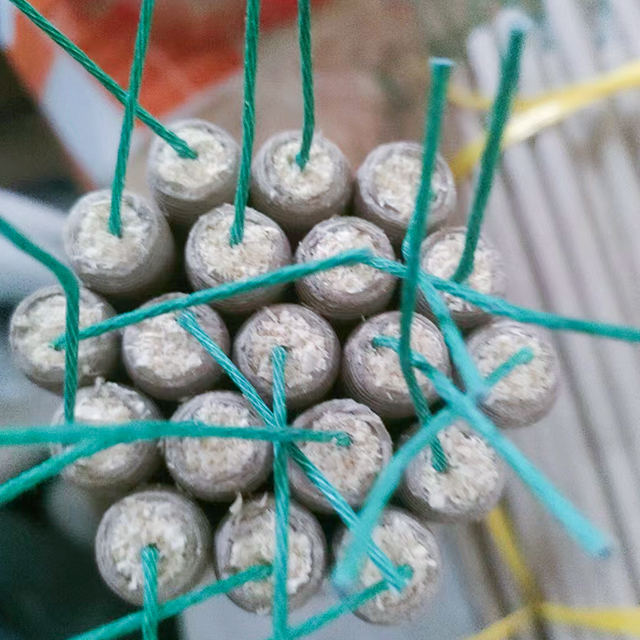

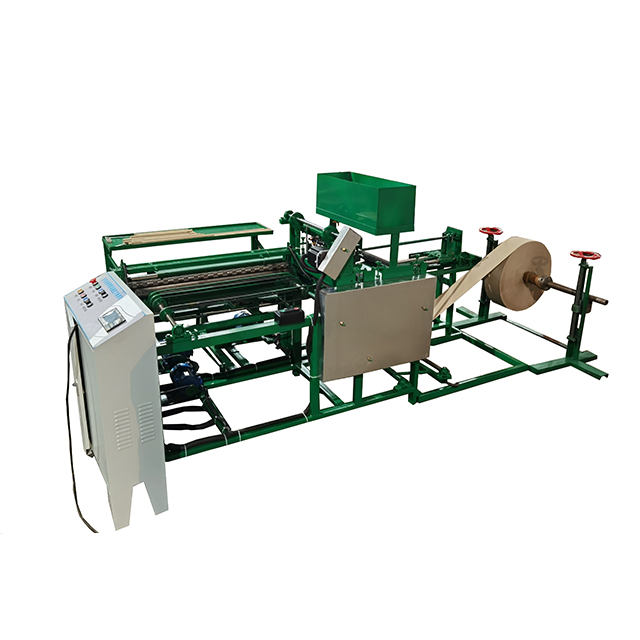

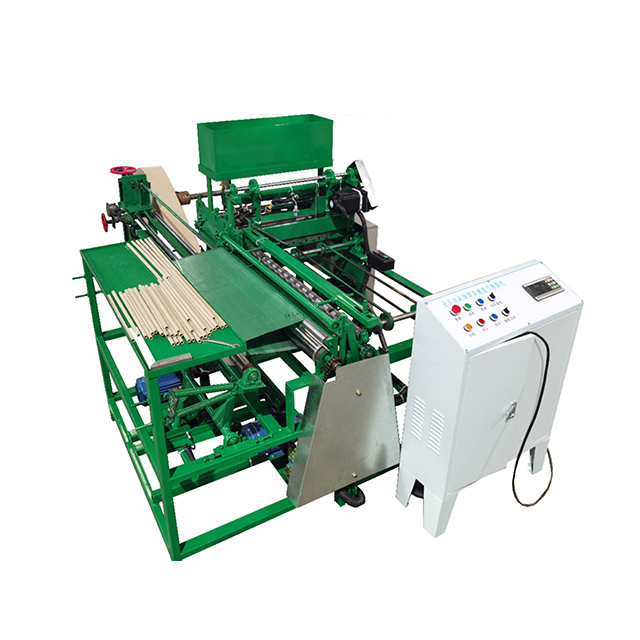

The 288 Shots Paper Tube Making Machine rolls paper tubes for 288 shots (gatling) cake fireworks. It is built by YOVON, a fireworks machinery manufacturer in Liling, Hunan, China.
Technical Specifications
| Paper tube inside diameter | ID 6–16 mm |
|---|---|
| Machine length (type) | 300–1000 mm |
| Paper thickness | 200–240 g |
| Tube single thickness | 1–5 mm |
| Output speed | 25–30 strings/min |
| Rated voltage | 380 V |
| Motor power | 0.37 kW × 3, 0.75 kW × 1 |
| Maximum paper feed length | 1300 mm |
| Machine size | 3000 × 1600 × 1200 mm |
| Machine weight | 300 kg |
To request the full specification and a quotation, tell us your target output and destination country.
